LINEAR DRAINAGE TRENCH （MODULAR MODE)

EN14A33A15-C250 grade SMC linear drainage ditch, this product has the functions of water collection and drainage, and is one of the key products in the urban drainage system. It is the best product for water collection and drainage of residential areas, green belts, and urban roads. Light weight, large drainage area, smooth surface with good non-slip design, beautiful appearance, the product can have different colors. Anti-aging, high temperature resistance, cold resistance. Avatar's drainage technology is at the international leading level. The product fills the gap in the world. The quality exceeds that of similar foreign products. Grades A, B, and C can meet all scenarios. For ports andterminals, please choose our company’s grade D.

Availability:



Inquire PDF Export

Product Description

Performance index	SMC Drainage Combined Kerb Block	Cement curbstone	Marble Along the Road Stone
Function	Capable of drainge,drainage,and soil retention	Retaning soil	Retaning soil
Beautiful	Different colors and patterns	Cement grey	Natural marble
Weight	light	Weight	Weight
Corrosion resistance	Corrosion preventive	Easy to pulverize	Same as
Lmpact resistance	Strong impact resistance	Same as	Strong

LINEAR DRAINAGE TRENCH （MODULAR MODE)

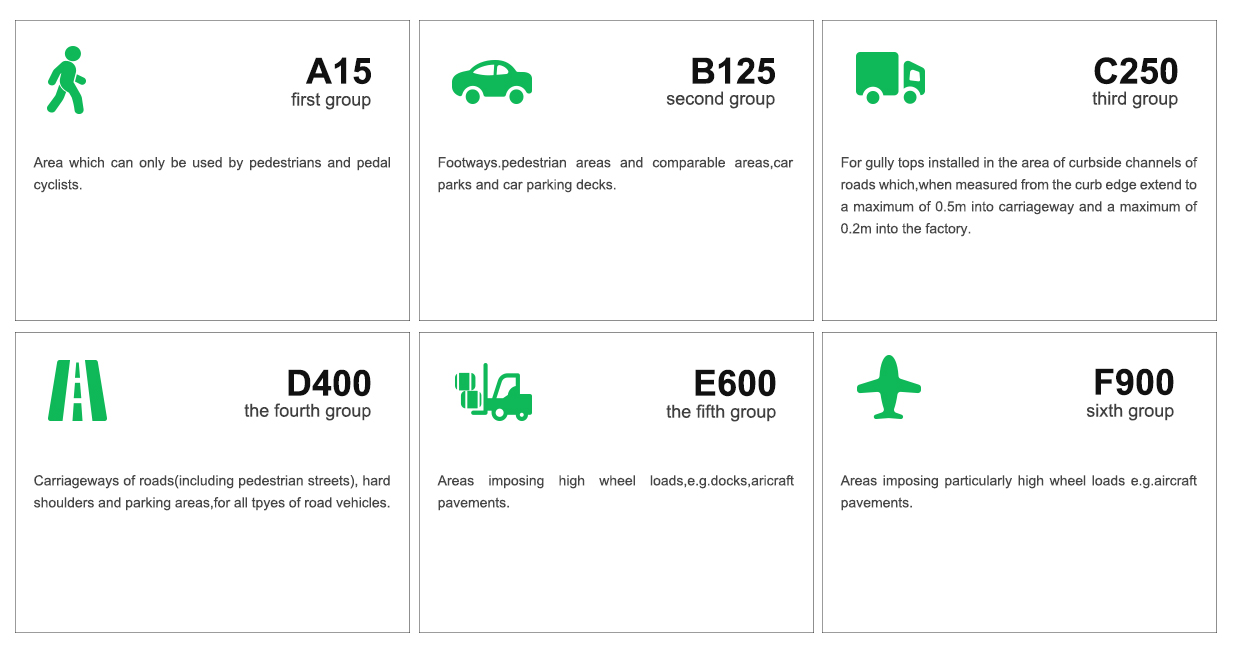

Load range A15 to C250
Suitable for channel drainage in various scenes
Various underground cable trenches
Multiple widths and depths for all solutions
High temperature press SMC sheet molding compounds
Non rusting, non discoloration, anti-aging
Certificated Slip Resistant Design
Modular mode, can be kept in stock

UV resistance test

Table 3-1 Ultravioler Test Conditions Standard Source Duration of Exposure ASTM G154

Table 3-1 Ultraviolet Test Conditions

Standard	Source	Duratlon of Exposure
ASTM G154a(Cycle 1)	UVA:340nm	2,160hours
ASTM G154b(Cycle 1)	Xenon Arc:340nm	1,000hours
ASTM G154(Cycle 3)c	UVB:Type313	2,160hours

Results Summary

Average Flexural Strength

Before UV aging

(MPa)

Average Flexural Strength

After UV aging

(MPa)

Average Flexural Strength due to

UV aging(%)

(MPa)

910

820

The loss of flexural strength was measured to be approximately 10%

SMC COMPOSITE LINEAR DRAINAGE TRENCH (MODULAR MODE) Suitable FOR ROAD DRAINAGE IN VARIOUS SCENES OF RESIDENTIAL AREAS AND CITIES
SPS6401	Slde substrate1000X250mmX30mmlengthxhelghtXcover embedded depth		A15/A50 B125/C250
SPS6501	Bottom 1000X150mm	SPS6400ZT trench width200mm
SPS6502	Bottom 1000X200mm	SPS6400ZT trench width 250mm
SPS6503	Bottom 1000x250mm	SPS6400ZT trench width 300mm
SPS6504	Bottom 1000x300mm	SPS6400ZT trench width 350mm
SPS6505	Bottom 1000x350mm	SPS6400ZT trench width 400mm
SPS6506	Bottom 1000x400mm	SPS6400ZT trench width 450mm
SPS6507	Bottom 1000x450mm	SPS6400ZT trench width 500mm
SPS6508	Bottom 1000x500mm	SPS6400ZT trench width 550mm
SPS6509	Bottom 1000x550mm	SPS6400ZT trench width 600mm
SPS6601	Deepen the side panel 1000X50mm
Optional Extras；Customize various widths and depths upon request for Model SPS6400ZT
