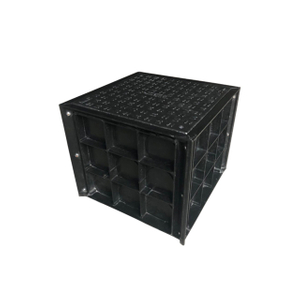

SMC COMPOSITE TELECOMMUNICATION ELECTRIC MODULAR MODE ACCESS CHAMBER
Meet the specifications of American Standard ANSI/SCTE 77 2017 and European standard BS EN124
Flame retardant, antistatic, insulation
Signal can penetrate unconditionally
Anti-aging and corrosion resistance
Light weight, convenient construction, short delivery time
Simple and flexible assembly
Save construction & installation costs and keep the site clean
High temperature press SMC sheet molding compounds
Non rusting, non discoloration, anti-aging
No loss of mortar, Slip Resistant Design
UV resistance test
Table 3-1 Ultravioler Test Conditions Standard Source Duration of Exposure ASTM G154
Table 3-1 Ultraviolet Test Conditions
Standard | Source | Duratlon of Exposure |
ASTM G154a(Cycle 1) | UVA:340nm | 2,160hours |
ASTM G154b(Cycle 1) | Xenon Arc:340nm | 1,000hours |
ASTM G154(Cycle 3)c | UVB:Type313 | 2,160hours |
Results summary | ||
Average Flexural Strength Before UV aging (MPa) | Average Flexural Strength After UV aging (MPa) | Average Flexural Strength due to UV aging(%) (MPa) |
910 | 820 | 10 |
The loss of flexural strength was measured to be approximately 10%
Flame retardant grade
The flame retardant grade is FV0,(the highest grade of non-metallic mateials），and the smoke emission level is 15 when burned at high temperatures.The smoke is non-toxic,and the ttoxicity level is ZA1,which is considered safe ievel one.
Performanceindex | SMC manhole | Cement manhole |
structure | Combined type | Bypass note |
transport | light | heavy |
install | convenient | complex |
Meet the specifications of EN124-A15/A50/B125/C250loading
Meet the specifications of ANSI/SCTE 77 2017Transverse loading
Our Third Party Testing Bodies: LLOYDS BRITISH, ICAS, SGS
Title： SMC COMPOSITE MODULAR ACCESS CHAMBER Flame retardant, antistatic, customizable | ||||
PRODUCT CODE | LENGTH X WIDTH (MM) | DEPTH (MM) | Weight(Kg) | LOADING（ＫＮ） |
ZGJ9201 | 600x300 | 40 | 3 | 15 /50 /125/ 250 |
ZGJ9202 | 900X300 | 40 | 4 | |
MODULARDMODEDIMENSIONs:600X600X600,600X600X900,600X900X600600X900X900,600X1200X600,600X1200X900,900X900X900,900X900X1200,1200X1200X900,1200X1200X1200,1200X1500X900,1200X1500X1200,1500X1500X1200 | ||||
