Bridges are developed as very long-lasting constructions that will allow the crossing of very deep, vast rivers and valleys, or our bodies of water. In addition to permitting secure passage of pedestrians and cars over a river, a bridge need to contain measures to manage drainage that would in any other case compromise its integrity or the protection of these on foot or riding over it. Here, we shall delve deep into the world of bridge drainage systems, their challenges, and the revolutionary options — the latter which include these proposed with the aid of such market leaders as Avatar Composite.
Improper drainage can be a disastrous difficulty for the balance and security of bridge structures. If bridges are no longer successfully drained, the following troubles may occur:
The structural damage caused by accumulated water contributes to considerable steel corrosion and concrete degradation, which eventually loses much of its initial strength, thereby posing a great danger to transportation loads.Safety hazards resulting from surface water trapped on the deck materialize in hydroplaning and reduced tire adhesion that can lead to very dangerous accidents.
Freeze-Thaw Damage: Water Entering the Crack Freezes in Colder Conditions and Exerts Stress on Th Constituting Another Menace toward Structural Members.
Increased Maintenance Costs: Because of the cumbersome repairs, it is likely to be charged more in terms of long-term maintenance.
Environmental Impact: The neglected drainage water may transport the pollutants from the bridge deck into the adjacent ecosystems.
These problems emphasize the necessity of viaduct drainage system implementation; it has to be dignified for the bridge engineers and maintenance people.
High-Speed Traffic: Passenger vehicles and freight trucks blowing across at high speeds make maintaining and cleaning drainage systems on bridges difficult. Not to forget, these basic housekeeping activities can be life-threatening for the workers involved.
Limited Space: Generally, bridges offer limited space for the laying of the drainage components. Installation demands some special and innovative approaches to ensure efficient and sustainable system performance.
Debris Accumulation: The most common problem is the clogging of the drainage openings with leaves and litter, which may have come from either the bridge users or been blown onto the bridge by high winds.
Variable Weather Conditions: They have to be designed to withstand all levels of precipitation, from light showers up to heavy storms.
Expansion and Contraction: Fluctuations in temperature cause expansion and contraction in bridges, and this may have effects on the integrity of drainage systems.
Aesthetic Considerations: Drainage systems have to work but in such a way that they do not spoil the bridge’s looks.
Weight Limitations: The addition of the drainage components should not considerably increase the total weight of the bridge.
1、SMC Material Drainage Channels
Avatar Composite has developed a patent solution by using Sheet Molding Compound (SMC) material for manufacturing liner drainage systems for bridges and viaducts. These SMC drainage channels have several advantages:
Integrated Anti-Skid Surface: Channels’ surface is cast with pavement, improving vehicle safety for skidding.
Easy Installation: Because the SMC material is light in weight, the installation is easier compared to using traditional materials.
High Strength: SMC is lightweight but has high strength and is very durable.
Customizable Colors: The sections can be produced in reflective yellow. It improves visibility to guide the traffic at night
2、Garbage Collection Windows
Avatar's bridge drainage scheme includes strategically positioned garbage collection windows at specified intervals along the drainage channel. This innovative feature solves one of the major problems with bridge drainage- debris accumulation. These collection windows make it much easier to undertake maintenance, acting to clean and reduce possible incidences of clogging that would lead to a reduction in the performance of the whole system.
BS EN 1433 Elevated Collection and delivery Ditch

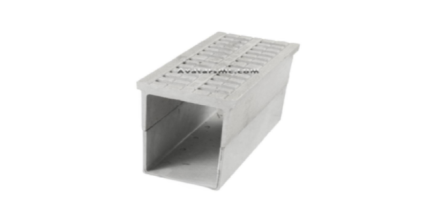

Avatar Composite presents the BSEN1433 grade SMC elevated channel and bridge drainage system, developed for high bridges and viaducts. This is made up of various load capacities (B125, C250, D400) to meet the different requirements of bridges. It has the following features:
Cleaning Window System: Easy maintenance way and debris removal facilitator.
Optional Filter Addition: Water quality management aid that lowers environmental impact.
3、Longitudinal Drainage Systems
Typical modern bridge drainage schemes will include longitudinal drainage systems that run parallel to the length of the bridge. Components of such a system generally include:
Continuous drainage channels running the entire length of the bridge to collect water. Scuppers, which are vertical drainage pipes for rapid removal of water from the bridge deck.
Outfall Pipes: Larger pipes that carry water from scuppers to the ground or a water body below.
Transverse Drainage Systems Complementing Longitudinal Systems, these transverse drainage components aid in moving water across the width of the bridge:
Cross Slopes: The bridge deck is designed with a slight slope that directs water to the drainage channels.
Expansion Joint Drains: These are special drains that are installed at bridge expansion joints to prevent the infiltration of water. Smart Drainage Systems Incorporating technology into bridge drainage schemes is an emerging trend.
Sensors: Monitor water levels and flow rates in real-time.
Automated cleaning systems: Clear debris from the openings without manual intervention.
Data analytics: Predict maintenance needs and optimize performance.
Sustainable Drainage Solutions Environmental considerations are of increasing profile in bridge drainage design:Bioswales – Vegetated channels that filter pollutants from bridge runoff. Retention ponds to collect and treat water before it is released into the environment. Permeable Surfaces Special bridge deck material: allow water to percolate through, reducing surface runoff.
Effective bridge drainage represents one of the most demanding infrastructural features related to design and maintenance. The high-speed traffic, space availability, and weather conditions pose a real challenge for the effective operation of any drainage system. The solution calls for innovation. Companies such as Avatar Composite develop and produce advanced drainage systems that respond to those challenges by providing higher safety precautions combined with extra durability and ease in maintenance.
Materials like SMC, integrated anti-skid surfaces, and garbage collection windows, along with design flexibility, enable today’s bridge drainage systems to be more efficient and sustainable. With every improvement in the field of bridge engineering, there will be more advanced drainage solutions developed to keep our critical transportation infrastructure safe, operational, and environmentally conscientious into the future.
This is where the future of bridge drainage will be: smart technology joined with sustainability and advanced materials. The better we make our viaduct drainage systems, the longer our bridges will last. They will also provide better road safety and reduce the environmental effect. This further proved Avatar Composite’s as a forerunner and how their solutions will shape futuristic infrastructures.
