Meet the specifications of EN124-A15loading
Our Third Party Testing Bodies: LLOYDS BRITISH, ICAS, SGS
All Access Covers are manufactured in SMC
No inherent scrap value
Corrosion resistant
Impact and weather resistant
Uniqe multi-directional slip
lightweight meeting Manual Handling Regulations

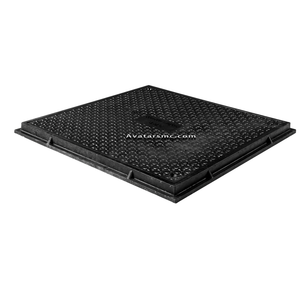

EN124 SMC COMPOSITE SQUARE MANHOLE COVER | ||||||
PRODUCT CODE | CLEAR OPENING （ｐ）mm | OVER BASE （Ｄ） mm | COVER SIZE （ｄ）mm | DEPTH （ｈ） mm | Weight (Kg) | LOADING （KN） |
CSY3302 | 460 | 580 | 500 | 45 | 11 | 15 |
CSY3303 | 560 | 670 | 600 | 45 | 14 | 15 |
CSY3304 | 600 | 780 | 650 | 45 | 15 | 15 |
CSY3305 | 660 | 770 | 700 | 45 | 17 | 15 |
Optional Extras: Rubber Sealed ｜Security Locking｜ | ||||||
lightweight meeting Manual Handling Regulations
Our Third Party Testing Bodies: LLOYDS BRITISH, ICAS, SGS
Avatar SMC Performance index
Anti slip pattern
Avatar cover of composite access covers achieved a market leading Skid Resistance Value of 89
The table below has been developed from data collected by County
Surveyors Society and illustrates the acceptabable parameters when tested using the TRRL Pendulum Test in general accordance with BS667:part 1:1986
This test provides a slip resistance value(SRV) for each surface tested The higher value the greater slip resistance.
TRRL Pengulum Value | Condition Of Surface |
19 and below | Dangerous |
20-39 | Marginal |
40-74 | Satisfactory |
Adove75 | Excelient |
UV resistance test
Table 3-1 Ultravioler Test Conditions Standard Source Duration of Exposure ASTM G154
Table 3-1 Ultraviolet Test Conditions
Standard | Source | Duratlon of Exposure |
ASTM G154a(Cycle 1) | UVA:340nm | 2,160hours |
ASTM G154b(Cycle 1) | Xenon Arc:340nm | 1,000hours |
ASTM G154(Cycle 3)c | UVB:Type313 | 2,160hours |
Results Summary | ||
Average Flexural Strength Before UV aging (MPa) | Average Flexural Strength After UV aging (MPa) | Average Flexural Strength due to UV aging(%) (MPa) |
910 | 820 | 10 |
The loss of flexural strength was measured to be approximately 10%
Performance Comparison
Performance advantages | SMC Manhole cover | Reinforced concrete manhole cover | Cast iron manhole cover |
Design service | >50 | <10 | >30 |
Fire performance | A2 ,non-combustible | A1,Burst in high temperature | A2, non-combustible |
Structural loads | High product structral strength | Low strength,thick product,unable to blend with steel bars | High product structral strength |
Corrosion resistance | Acid and alkali resistance,strong corrosion resistance | Easy corrosion | Easy corrosion |
Weight | Light | Extra heavy | weight |
Install | Simple and convenient | Tired | Tired |
Jump resistance | No bounce | No bounce | Can bounce |
Overhaul | Opening with ease | Difficult to open | Difficult to open |
Broken state | Will not shatter or break | Comminted fracture | Comminted fracture |
